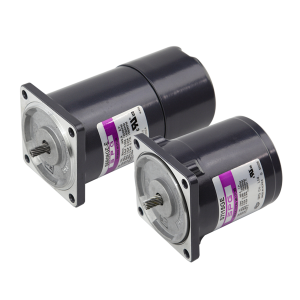

Induction Motors
Tình trạng: Còn hàng
Status: In stock
Yêu cầu báo giáDỊCH VỤ & KHUYẾN MẠI
Quà tặng trị giá 200.000đ (Áp dụng sản phẩm tự động hóa công nghiệp SCHNEIDER ELECTRIC)
Tặng voucher 20.000đ khi đánh giá 5*(Áp dụng cho đơn hàng từ 200.000đ)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- 104 Motor Coding System
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Gearhead Coding System
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- 104 Gearhead Coding System
| ||||||||||||||||||||||||||||
3W(□60mm)
3W INDUCTION MOTOR □60㎜ LEAD WIRE TYPE
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 60 | S6I03GA S6I03GACE | 4 | 3 | 1 ø 110 | 60 | Cont. | 0.15 | 1500 | 0.21 | 0.021 | 0.25 | 0.025 | 2.0 |
| S6I03GC S6I03GCCE | 4 | 3 | 1 ø 100 | 50 | Cont. | 0.15 | 1200 | 0.25 | 0.025 | 0.25 | 0.025 | 2.0 | |
| 60 | 1450 | 0.21 | 0.021 | ||||||||||
| S6I03GE S6I03GECE | 4 | 3 | 1 ø 100 | 50 | Cont. | 0.15 | 1200 | 0.25 | 0.025 | 0.25 | 0.025 | 2.0 | |
| 60 | 1450 | 0.21 | 0.021 | ||||||||||
| 1 ø 115 | 60 | 0.15 | 1450 | 0.21 | 0.021 | 1.5 | |||||||
6W(□60mm)
6W INDUCTION MOTOR □60㎜ LEAD WIRE TYPE
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 60 | S6I06GA S6I06GACE | 4 | 6 | 1 ø 110 | 60 | Cont. | 0.20 | 1550 | 0.40 | 0.040 | 0.55 | 0.055 | 2.5 |
| S6I06GB S6I06GBCE | 4 | 6 | 1 ø 220 | 60 | Cont. | 0.10 | 1550 | 0.40 | 0.040 | 0.55 | 0.055 | 0.7 | |
| S6I06GC S6I06GCCE | 4 | 6 | 1 ø 100 | 50 | Cont. | 0.21 | 1200 | 0.50 | 0.050 | 0.45 | 0.055 | 2.5 | |
| 60 | 0.19 | 1500 | 0.42 | 0.042 | |||||||||
| S6I06GD S6I06GDCE | 4 | 6 | 1 ø 200 | 50 | Cont. | 0.10 | 1200 | 0.50 | 0.050 | 0.45 | 0.055 | 0.7 | |
| 60 | 1500 | 0.42 | 0.042 | 0.055 | |||||||||
| S6I06GE S6I06GECE | 4 | 6 | 1 ø 100 | 50 | Cont. | 0.18 | 1200 | 0.50 | 0.050 | 0.52 | 0.055 | 2.5 | |
| 60 | 0.19 | 1500 | 0.42 | 0.042 | 0.055 | ||||||||
| 1 ø 115 | 60 | 0.19 | 1500 | 0.42 | 0.042 | 0.55 | 0.055 | 2.0 | |||||
| S6I06GX S6I06GXCE | 4 | 6 | 1 ø 220 | 50 | Cont. | 0.08 | 1200 | 0.50 | 0.050 | 0.50 | 0.055 | 0.6 | |
| 1 ø 240 | 0.09 | 0.53 | 0.053 | 0.55 | 0.055 | ||||||||
15W(□70mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 70 | S7l15GA S7l15GA(TP) S7l15GACE | 4 | 15 | 1 ø 110 | 60 | Cont. | 0.34 | 1600 | 1.00 | 0.100 | 1.10 | 0.110 | 5.0 |
| S7l15GB S7l15GB(TP) S7l15GBCE | 4 | 15 | 1 ø 220 | 60 | Cont. | 0.19 | 1550 | 1.10 | 0.110 | 1.10 | 0.110 | 1.2 | |
| S7l15GC S7l15GC(TP) S7l15GCCE | 4 | 15 | 1 ø 100 | 50 | Cont. | 0.35 | 1250 | 1.20 | 0.120 | 0.90 | 0.090 | 5.0 | |
| 60 | 0.34 | 1550 | 1.00 | 0.100 | |||||||||
| S7l15GD S7l15GD(TP) S7l15GDCE | 4 | 15 | 1 ø 200 | 50 | Cont. | 0.19 | 1200 | 1.25 | 0.125 | 0.90 | 0.090 | 1.2 | |
| 60 | 0.18 | 1500 | 1.20 | 0.120 | |||||||||
| S7l15GE S7l15GECE | 4 | 15 | 1 ø 100 | 50 | Cont. | 0.26 | 1200 | 1.25 | 0.125 | 0.90 | 0.090 | 5.0 | |
| 60 | 0.33 | 1550 | 1.00 | 0.100 | |||||||||
| 1 ø 115 | 60 | 0.30 | 1600 | 1.00 | 0.100 | 4.0 | |||||||
| S7l15GX S7l15GXCE | 4 | 15 | 1 ø 220 | 50 | Cont. | 0.16 | 1200 | 1.25 | 0.125 | 0.75 | 0.075 | 0.9 | |
| 1 ø 240 | 0.18 | 1.35 | 0.135 | 0.90 | 0.090 | ||||||||
15W(□80mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 80 | S8l15GA S8l15GA(TP) S8l15GACE | 4 | 15 | 1 ø 110 | 60 | Cont. | 0.43 | 1600 | 1.00 | 0.100 | 1.20 | 0.120 | 4.0 |
| S8l15GB S8l15GB(TP) S8l15GBCE | 4 | 15 | 1 ø 220 | 60 | Cont. | 0.22 | 1600 | 1.00 | 0.100 | 1.20 | 0.120 | 1.0 | |
| S8l15GC S8l15GC(TP) S8l15GCCE | 4 | 15 | 1 ø 100 | 50 | Cont. | 0.51 | 1300 | 1.20 | 0.120 | 0.95 | 0.095 | 4.0 | |
| 60 | 0.43 | 1550 | 1.00 | 0.100 | |||||||||
| S8l15GD S8l15GD(TP) S8l15GDCE | 4 | 15 | 1 ø 200 | 50 | Cont. | 0.25 | 1300 | 1.20 | 0.120 | 0.95 | 0.095 | 1.0 | |
| 60 | 0.22 | 1550 | 1.00 | 0.100 | |||||||||
| S8l15GE S8l15GECE | 4 | 15 | 1 ø 100 | 50 | Cont. | 0.51 | 1250 | 1.20 | 0.120 | 0.95 | 0.095 | 4.0 | |
| 60 | 0.42 | 1550 | 1.00 | 0.100 | |||||||||
| 1 ø 115 | 60 | 0.46 | 1600 | 1.00 | 0.100 | 3.0 | |||||||
| S8l15GX S8l15GXCE | 4 | 15 | 1 ø 220 | 50 | Cont. | 0.16 | 1200 | 1.30 | 0.130 | 0.95 | 0.095 | 1.0 | |
| 1 ø 240 | 0.17 | 1.40 | 0.140 | 1.10 | 0.110 | ||||||||
25W(□80mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 80 | S8l25GA S8l25GA(TP) S8l25GACE | 4 | 25 | 1 ø 110 | 60 | Cont. | 0.51 | 1600 | 1.60 | 0.160 | 1.80 | 0.180 | 6.0 |
| S8l25GB S8l25GB(TP) S8l25GBCE | 4 | 25 | 1 ø 220 | 60 | Cont. | 0.23 | 1550 | 1.65 | 0.165 | 1.80 | 0.180 | 1.05 | |
| S8l25GC S8l25GC(TP) S8l25GCCE | 4 | 25 | 1 ø 100 | 50 | Cont. | 0.57 | 1250 | 2.00 | 0.200 | 1.45 | 0.145 | 6.0 | |
| 60 | 0.52 | 1550 | 1.65 | 0.165 | |||||||||
| S8l25GD S8l25GD(TP) S8l25GDCE | 4 | 25 | 1 ø 200 | 50 | Cont. | 0.30 | 1250 | 2.00 | 0.200 | 1.45 | 0.145 | 1.5 | |
| 60 | 0.29 | 1500 | 1.70 | 0.170 | |||||||||
| S8l25GE S8l25GECE | 4 | 25 | 1 ø 100 | 50 | Cont. | 0.54 | 1250 | 2.00 | 0.200 | 1.20 | 0.120 | 6.0 | |
| 60 | 0.55 | 1500 | 1.70 | 0.170 | |||||||||
| 1 ø 115 | 60 | 0.59 | 1500 | 1.70 | 0.170 | 4.5 | |||||||
| S8l25GX S8l25GXCE | 4 | 25 | 1 ø 220 | 50 | Cont. | 0.23 | 1200 | 2.10 | 0.210 | 1.10 | 0.110 | 1.3 | |
| 1 ø 240 | 0.25 | 2.20 | 0.220 | 1.30 | 0.130 | ||||||||
| S8l25GU S8l25GUCE | 4 | 25 | 3 ø 200 | 50 | Cont. | 0.26 | 1300 | 1.95 | 0.195 | 3.50 | 0.350 | – | |
| 60 | 0.24 | 1550 | 1.65 | 0.165 | 2.90 | 0.290 | |||||||
| S8l25GT S8l25GTCE | 4 | 25 | 3 ø 220 | 50 | Cont. | 0.28 | 1350 | 1.90 | 0.190 | 4.20 | 0.420 | – | |
| 60 | 0.24 | 1600 | 1.60 | 0.160 | 3.50 | 0.350 | |||||||
| S8l25GS S8l25GSCE | 4 | 25 | 3 ø 380 | 50 | Cont. | 0.14 | 1250 | 2.00 | 0.200 | 3.15 | 0.315 | – | |
| 60 | 0.12 | 1500 | 1.70 | 0.170 | 2.50 | 0.250 | |||||||
| 3 ø 400 | 50 | Cont. | 0.14 | 1250 | 2.10 | 0.210 | 3.50 | 0.350 | |||||
| 60 | 0.12 | 1500 | 1.80 | 0.180 | 2.75 | 0.275 | |||||||
| 3 ø 415 | 50 | Cont. | 0.15 | 1300 | 1.95 | 0.195 | 3.75 | 0.375 | |||||
| 60 | 0.13 | 1550 | 1.65 | 0.165 | 3.00 | 0.300 | |||||||
| 3 ø 440 | 50 | Cont. | 0.15 | 1300 | 2.10 | 0.210 | 4.40 | 0.440 | |||||
| 60 | 0.13 | 1550 | 1.80 | 0.180 | 3.40 | 0.340 | |||||||
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l40GA( ) S9l40GA( )(TP) S9l40GA( )CE | 4 | 40 | 1 ø 110 | 60 | Cont. | 0.82 | 1600 | 2.50 | 0.250 | 2.90 | 0.290 | 10.0 |
| S9l40GB( ) S9l40GB( )(TP) S9l40GB( )CE | 4 | 40 | 1 ø 220 | 60 | Cont. | 0.41 | 1600 | 2.50 | 0.250 | 2.90 | 0.290 | 2.5 | |
| S9l40GC( ) S9l40GC( )(TP) S9l40GC( )CE | 4 | 40 | 1 ø 100 | 50 | Cont. | 0.80 | 1300 | 3.10 | 0.310 | 2.40 | 0.240 | 10.0 | |
| 60 | 0.85 | 1550 | 2.60 | 0.260 | |||||||||
| S9l40GD( ) S9l40GD( )(TP) S9l40GD( )CE | 4 | 40 | 1 ø 200 | 50 | Cont. | 0.41 | 1300 | 3.10 | 0.310 | 2.40 | 0.240 | 2.5 | |
| 60 | 0.43 | 1550 | 2.60 | 0.260 | |||||||||
| S9l40GE( ) S9l40GE( )CE | 4 | 40 | 1 ø 100 | 50 | Cont. | 0.82 | 1300 | 3.10 | 0.310 | 2.40 | 0.240 | 10.0 | |
| 60 | 0.85 | 1550 | 2.60 | 0.260 | |||||||||
| 1 ø 115 | 60 | 0.91 | 1550 | 2.60 | 0.260 | 8.0 | |||||||
| S9l40GX( ) S9l40GX( )CE | 4 | 40 | 1 ø 220 | 50 | Cont. | 0.34 | 1250 | 3.15 | 0.315 | 1.80 | 0.180 | 2.0 | |
| 1 ø 240 | 0.37 | 3.35 | 0.335 | 2.10 | 0.210 | ||||||||
| S9l40GU( ) S9l40GU( )CE | 4 | 40 | 3 ø 200 | 50 | Cont. | 0.36 | 1300 | 3.10 | 0.310 | 6.30 | 0.630 | – | |
| 60 | 0.33 | 1550 | 2.60 | 0.260 | 5.20 | 0.520 | |||||||
| S9l40GT( ) S9l40GT( )CE | 4 | 40 | 3 ø 220 | 50 | Cont. | 0.39 | 1350 | 3.00 | 0.300 | 7.60 | 0.760 | – | |
| 60 | 0.34 | 1550 | 2.50 | 0.250 | 6.10 | 0.610 | |||||||
| S9l40GS( ) S9l40GS( )CE | 4 | 40 | 3 ø 380 | 50 | Cont. | 0.21 | 1300 | 3.20 | 0.320 | 6.30 | 0.630 | – | |
| 60 | 0.19 | 1550 | 2.70 | 0.270 | 4.85 | 0.485 | |||||||
| 3 ø 400 | 50 | Cont. | 0.21 | 1300 | 3.30 | 0.330 | 6.90 | 0.690 | |||||
| 60 | 0.19 | 1550 | 2.80 | 0.280 | 5.25 | 0.525 | |||||||
| 3 ø 415 | 50 | Cont. | 0.21 | 1350 | 3.10 | 0.310 | 7.30 | 0.730 | |||||
| 60 | 0.19 | 1600 | 2.60 | 0.260 | 5.70 | 0.570 | |||||||
| 3 ø 440 | 50 | Cont. | 0.21 | 1350 | 3.20 | 0.320 | 8.20 | 0.820 | |||||
| 60 | 0.19 | 1600 | 2.70 | 0.270 | 6.30 | 0.630 | |||||||
60W(□90mm)]
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l60GA( ) S9l60GA( )(TP) S9l60GA( )CE | 4 | 60 | 1 ø 110 | 60 | Cont. | 1.35 | 1600 | 3.80 | 0.380 | 4.80 | 0.480 | 15.0 |
| S9l60GB( ) S9l60GB( )(TP) S9l60GB( )CE | 4 | 40 | 1 ø 220 | 60 | Cont. | 0.68 | 1600 | 3.90 | 0.390 | 4.80 | 0.480 | 4.0 | |
| S9l60GC( ) S9l60GC( )(TP) S9l60GC( )CE | 4 | 60 | 1 ø 100 | 50 | Cont. | 1.26 | 1300 | 4.60 | 0.460 | 3.40 | 0.340 | 15.0 | |
| 60 | 1.37 | 1550 | 3.90 | 0.390 | |||||||||
| S9l60GD( ) S9l60GD( )(TP) S9l60GD( )CE | 4 | 60 | 1 ø 200 | 50 | Cont. | 0.65 | 1300 | 4.70 | 0.470 | 3.85 | 0.385 | 4.0 | |
| 60 | 0.70 | 1550 | 4.00 | 0.400 | |||||||||
| S9l60GE( ) S9l60GE( )CE | 4 | 60 | 1 ø 100 | 50 | Cont. | 1.10 | 1300 | 4.60 | 0.460 | 3.20 | 0.320 | 15.0 | |
| 60 | 1.20 | 1550 | 3.90 | 0.390 | |||||||||
| 1 ø 115 | 60 | 1.20 | 1500 | 4.00 | 0.400 | 12.0 | |||||||
| S9l60GX( ) S9l60GX( )CE | 4 | 60 | 1 ø 220 | 50 | Cont. | 0.47 | 1300 | 4.60 | 0.460 | 3.20 | 0.320 | 3.5 | |
| 1 ø 240 | 0.50 | 4.90 | 0.490 | 3.90 | 0.390 | ||||||||
| S9l60GU( ) S9l60GU( )CE | 4 | 60 | 3 ø 200 | 50 | Cont. | 0.60 | 1300 | 4.60 | 0.460 | 9.30 | 0.930 | – | |
| 60 | 0.50 | 1500 | 3.90 | 0.390 | 8.00 | 0.800 | |||||||
| S9l60GT( ) S9l60GT( )CE | 4 | 60 | 3 ø 220 | 50 | Cont. | 0.80 | 1350 | 4.40 | 0.440 | 11.35 | 1.135 | – | |
| 60 | 0.57 | 1600 | 3.90 | 0.390 | 9.30 | 0.930 | |||||||
| S9l60GS( ) S9l60GS( )CE | 4 | 60 | 3 ø 380 | 50 | Cont. | 0.27 | 1300 | 4.60 | 0.460 | 8.25 | 0.825 | – | |
| 60 | 0.24 | 1550 | 3.90 | 0.390 | 6.50 | 0.650 | |||||||
| 3 ø 400 | 50 | Cont. | 0.29 | 1300 | 4.70 | 0.470 | 9.30 | 0.930 | |||||
| 60 | 0.25 | 1550 | 4.00 | 0.400 | 7.35 | 0.735 | |||||||
| 3 ø 415 | 50 | Cont. | 0.27 | 1350 | 4.60 | 0.460 | 9.95 | 0.995 | |||||
| 60 | 0.23 | 1600 | 3.80 | 0.380 | 7.50 | 0.750 | |||||||
| 3 ø 440 | 50 | Cont. | 0.31 | 1350 | 4.70 | 0.470 | 10.75 | 1.075 | |||||
| 60 | 0.25 | 1600 | 3.90 | 0.390 | 8.40 | 0.840 | |||||||
90W(□90mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l90GA( ) S9l90GA( )(TP) S9l90GA( )CE | 4 | 90 | 1 ø 110 | 60 | Cont. | 2.00 | 1600 | 5.60 | 0.560 | 5.70 | 0.570 | 25.0 |
| S9l90GB( ) S9l90GB( )(TP) S9l90GB( )CE | 4 | 90 | 1 ø 220 | 60 | Cont. | 1.00 | 1600 | 5.60 | 0.560 | 5.70 | 0.570 | 0.6 | |
| S9l90GC( ) S9l90GC( )(TP) S9l90GC( )CE | 4 | 90 | 1 ø 100 | 50 | Cont. | 1.80 | 1300 | 6.90 | 0.690 | 5.00 | 0.500 | 25.0 | |
| 60 | 2.00 | 1550 | 5.80 | 0.580 | |||||||||
| S9l90GD( ) S9l90GD( )(TP) S9l90GD( )CE | 4 | 90 | 1 ø 200 | 50 | Cont. | 0.90 | 1300 | 6.90 | 0.690 | 5.00 | 0.500 | 6.0 | |
| 60 | 1.00 | 1550 | 5.80 | 0.580 | |||||||||
| S9l90GE( ) S9l90GE( )CE | 4 | 90 | 1 ø 100 | 50 | Cont. | 1.50 | 1300 | 6.90 | 0.690 | 5.00 | 0.500 | 25.0 | |
| 60 | 1.80 | 1550 | 5.80 | 0.580 | |||||||||
| 1 ø 115 | 60 | 1.80 | 1550 | 6.00 | 0.600 | 20.0 | |||||||
| S9l90GX( ) S9l90GX( )CE | 4 | 90 | 1 ø 220 | 50 | Cont. | 0.68 | 1300 | 6.90 | 0.690 | 4.80 | 0.480 | 5.0 | |
| 1 ø 240 | 0.72 | 7.20 | 0.720 | 5.20 | 0.520 | ||||||||
| S9l90GU( ) S9l90GU( )CE | 4 | 90 | 3 ø 200 | 50 | Cont. | 0.63 | 1300 | 6.90 | 0.690 | 10.60 | 1.060 | – | |
| 60 | 0.60 | 1550 | 6.00 | 0.600 | 8.90 | 0.890 | |||||||
| S9l90GT( ) S9l90GT( )CE | 4 | 90 | 3 ø 220 | 50 | Cont. | 0.68 | 1350 | 6.80 | 0.680 | 13.00 | 1.300 | – | |
| 60 | 0.55 | 1600 | 5.70 | 0.570 | 10.50 | 1.050 | |||||||
| S9l90GS( ) S9l90GS( )CE | 4 | 90 | 3 ø 380 | 50 | Cont. | 0.32 | 1300 | 6.80 | 0.680 | 10.55 | 1.055 | – | |
| 60 | 0.30 | 1550 | 5.70 | 0.570 | 8.20 | 0.820 | |||||||
| 3 ø 400 | 50 | Cont. | 0.35 | 1300 | 6.90 | 0.690 | 11.70 | 1.170 | |||||
| 60 | 0.32 | 1550 | 5.80 | 0.580 | 8.90 | 0.890 | |||||||
| 3 ø 415 | 50 | Cont. | 0.33 | 1350 | 6.80 | 0.680 | 12.00 | 1.200 | |||||
| 60 | 0.29 | 1600 | 5.70 | 0.570 | 9.50 | 0.950 | |||||||
| 3 ø 440 | 50 | Cont. | 0.35 | 1350 | 6.90 | 0.690 | 13.30 | 1.1330 | |||||
| 60 | 0.31 | 1600 | 5.80 | 0.580 | 10.50 | 1.050 | |||||||
120W(□90mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l120GA S9l120GA(TP) S9l120GACE | 4 | 120 | 1 ø 110 | 60 | Cont. | 2.10 | 1600 | 7.60 | 0.760 | 6.20 | 0.620 | 25.0 |
| S9l120GB S9l120GB(TP) S9l120GBCE | 4 | 120 | 1 ø 220 | 60 | Cont. | 1.00 | 1600 | 7.50 | 0.750 | 6.00 | 0.600 | 6.0 | |
| S9l120GC S9l120GC(TP) S9l120GCCE | 4 | 120 | 1 ø 100 | 50 | Cont. | 2.00 | 1250 | 9.60 | 0.960 | 5.70 | 0.570 | 25.0 | |
| 60 | 1550 | 7.90 | 0.790 | ||||||||||
| S9l120GD S9l120GD(TP) S9l120GDCE | 4 | 120 | 1 ø 200 | 50 | Cont. | 1.00 | 1250 | 9.50 | 0.950 | 5.50 | 0.550 | 6.0 | |
| 60 | 1550 | 7.80 | 0.780 | ||||||||||
150W(□90mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l150GU S9l150GUCE | 4 | 150 | 3 ø 200 | 50 | Cont. | 1.0 | 1250 | 11.70 | 1.170 | 18.0 | 1.800 | – |
| 60 | 0.9 | 1500 | 9.70 | 0.970 | 15.0 | 1.500 | |||||||
| S9l150GT S9l150GTCE | 4 | 150 | 3 ø 220 | 50 | Cont. | 1.0 | 1300 | 11.30 | 1.130 | 22.0 | 2.200 | – | |
| 60 | 0.9 | 1550 | 9.40 | 0.940 | 19.0 | 1.900 | |||||||
| S9l150GS S9l150GSCE | 4 | 150 | 3 ø 380 | 50 | Cont. | 0.46 | 1250 | 11.70 | 1.170 | 18.00 | 1.800 | – | |
| 60 | 0.42 | 1500 | 9.70 | 0.970 | 15.00 | 1.500 | |||||||
| 3 ø 400 | 50 | Cont. | 0.49 | 1250 | 11.70 | 1.170 | 19.00 | 1.900 | |||||
| 60 | 0.43 | 1500 | 9.70 | 0.970 | 16.00 | 1.600 | |||||||
180W(□90mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l180GA S9l180GA(TP) S9l180GACE | 4 | 180 | 1 ø 110 | 60 | Cont. | 2.60 | 1600 | 11.50 | 1.150 | 8.00 | 0.800 | 25.0 |
| S9l180GB S9l180GB(TP) S9l180GBCE | 4 | 180 | 1 ø 220 | 60 | Cont. | 1.32 | 1600 | 11.50 | 1.150 | 8.00 | 0.800 | 6.5 | |
| S9l180GC S9l180GC(TP) S9l180GCCE | 4 | 180 | 1 ø 100 | 50 | Cont. | 3.20 | 1250 | 14.00 | 14.00 | 7.00 | 0.700 | 25.0 | |
| 60 | 2.90 | 1550 | 11.60 | 1.160 | |||||||||
| S9l180GD S9l180GD(TP) S9l180GDCE | 4 | 180 | 1 ø 200 | 50 | Cont. | 1.60 | 1250 | 14.00 | 1.400 | 7.00 | 0.700 | 6.5 | |
| 60 | 1.45 | 1550 | 11.60 | 1.160 | |||||||||
200W(□90mm)
| SIZE mm sq. | Type | Pole | Output | Voltage | Frequency | Duty | Rated Load | Starting Torque | Capacitor | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Torque | |||||||||||
| (W) | (V) | (Hz) | (A) | (rpm) | (kg-cm) | (N-m) | (kg-cm) | (N-m) | (uF) | ||||
| 90 | S9l200GU S9l200GUCE | 4 | 200 | 3 ø 200 | 50 | Cont. | 1.3 | 1250 | 16.00 | 1.600 | 24.00 | 2.400 | – |
| 60 | 1.2 | 1500 | 13.40 | 1.340 | 20.00 | 2.000 | |||||||
| S9l200GT S9l200GTCE | 4 | 200 | 3 ø 220 | 50 | Cont. | 1.3 | 1300 | 15.00 | 1.500 | 30.00 | 3.000 | – | |
| 60 | 1.2 | 1550 | 12.90 | 1.290 | 25.00 | 2.500 | |||||||
| S9l200GS | 4 | 200 | 3 ø 380 | 50 | Cont. | 0.62 | 1250 | 16.00 | 1.600 | 26.00 | 2.600 | – | |
| 60 | 0.55 | 1500 | 13.40 | 1.340 | 22.00 | 2.200 | |||||||
| 3 ø 400 | 50 | Cont. | 0.64 | 1250 | 16.00 | 1.600 | 30.00 | 3.000 | – | ||||
| 60 | 0.55 | 1500 | 13.40 | 1.340 | 25.00 | 2.500 | |||||||
Induction motor model
S6I03GA, S6I03GACE, S6I03GC, S6I03GCCE, S6I03GE, S6I03GECE, S6I06GA, S6I06GACE, S6I06GB, S6I06GBCE, S6I06GD, S6I06GDCE, S6I06GE, S6I06GECE, S6I06GX, S6I06GXCE, S9I40GA, S9I40GA(L), S9I40GA(H), S9I40GA(L)(TP), S9I40GA(H)(TP), S9I40GA(L)(CE), S9I40GA(H)(CE), S9I40GB, S9I40GB(L), S9I40GB(H), S9I40GB(L)(TP), S9I40GB(H)(TP), S9I40GB(L)(CE), S9I40GB(H)(CE), S9I40GC, S9I40GC(L), S9I40GC(H), S9I40GC(L)(TP), S9I40GC(H)(TP), S9I40GC(L)(CE), S9I40GC(H)(CE), S9I40GD, S9I40GD(L), S9I40GD(H), S9I40GD(L)(TP), S9I40GD(H)(TP), S9I40GD(L)(CE), S9I40GD(H)(CE), S9I40GE, S9I40GE(L), S9I40GE(H), S9I40GE(L)(CE), S9I40GE(H)(CE), S9I40GX, S9I40GX(L), S9I40GX(H), S9I40GX(L)(CE), S9I40GX(H)(CE), S9I40GU, S9I40GU(L), S9I40GU(H), S9I40GU(L)(CE), S9I40GU(H)(CE), S9I40GT, S9I40GT(L), S9I40GT(H), S9I40GT(L)(CE), S9I40GT(H)(CE), S9I40GS, S9I40GS(L), S9I40GS(H), S9I40GS(L)(CE), S9I40GS(H)(CE), S6I06GA, S6I06GACE, S6I06GB, S6I06GBCE, S6I06GC, S6I06GCCE, S6I06GD, S6I06GDCE, S6I06GE, S6I06GECE, S6I06GX, S6I06GXCE, S7l15GA, S7l15GA(TP), S7l15GACE, S7l15GB, S7l15GB(TP), S7l15GBCE, S7l15GC, S7l15GC(TP), S7l15GCCE, S7l15GD, S7l15GD(TP), S7l15GDCE, S7l15GE, S7l15GECE, , S7l15GX, S7l15GXCE, S8l15GA, S8l15GA(TP), S8l15GACE, S8l15GB, S8l15GB(TP), S8l15GBCE, S8l15GC, S8l15GC(TP), S8l15GCCE, S8l15GD, S8l15GD(TP), S8l15GDCE, S8l15GE, S8l15GECE, , S8l15GX, S8l15GXCE, S8l25GA, S8l25GA(TP), S8l25GACE, S8l25GB, S8l25GB(TP), S8l25GBCE, S8l25GC, S8l25GC(TP), S8l25GCCE, S8l25GD, S8l25GD(TP), S8l25GDCE, S8l25GE, S8l25GECE, , S8l25GX, S8l25GXCE, S8l25GU, S8l25GUCE, S8l25GT, S8l25GTCE, S8l25GS, S8l25GSCE, S9l60GA( ), S9l60GA( )(TP), S9l60GA( )CE, S9l60GB( ), S9l60GB( )(TP), S9l60GB( )CE, S9l60GC( ), S9l60GC( )(TP), S9l60GC( )CE, S9l60GD( ), S9l60GD( )(TP), S9l60GD( )CE, S9l60GE( ), S9l60GE( )CE, S9l60GX( ), S9l60GX( )CE, S9l60GU( ), S9l60GU( )CE, S9l60GT( ), S9l60GT( )CE, S9l60GS( ), S9l60GS( )CE, S9l60GA(L ), S9l60GA( L)(TP), S9l60GA(L )CE, S9l60GB(L ), S9l60GB(L )(TP), S9l60GB(L )CE, S9l60GC( L), S9l60GC(L )(TP), S9l60GC(L )CE, S9l60GD(L ),
S9l60GD(L )(TP), S9l60GD(L )CE, S9l60GE(L ), S9l60GE(L )CE, S9l60GX(L ), S9l60GX(L )CE, S9l60GU(L ), S9l60GU(L )CE, S9l60GT(L ), S9l60GT(L )CE, S9l60GS(L ), S9l60GS(L )CE, S9l60GA(H ), S9l60GA(H )(TP), S9l60GA(H )CE, S9l60GB(H ), S9l60GB(H )(TP), S9l60GB(H )CE, S9l60GC(H ), S9l60GC(H )(TP), S9l60GC(H )CE, S9l60GD(H ), S9l60GD(H )(TP), S9l60GD(H )CE, S9l60GE(H ), S9l60GE(H )CE, S9l60GX(H ), S9l60GX(H )CE, S9l60GU(H ), S9l60GU(H )CE, S9l60GT(H ), S9l60GT(H )CE, S9l60GS(H ), S9l60GS(H )CE, S9l90GA( ), S9l90GA( )(TP), S9l90GA( )CE, S9l90GB( ), S9l90GB( )(TP), S9l90GB( )CE, S9l90GC( ), S9l90GC( )(TP), S9l90GC( )CE, S9l90GD( ), S9l90GD( )(TP), S9l90GD( )CE, S9l90GE( ), S9l90GE( )CE, S9l90GX( ), S9l90GX( )CE, S9l90GU( ), S9l90GU( )CE, S9l90GT( ), S9l90GT( )CE, S9l90GS( ), S9l90GS( )CE, , S9l90GA(L ), S9l90GA(L )(TP), S9l90GA(L )CE, S9l90GB(L ), S9l90GB(L )(TP), S9l90GB(L)CE, S9l90GC(L ), S9l90GC(L )(TP), S9l90GC(L )CE, S9l90GD(L ), S9l90GD(L )(TP), S9l90GD(L )CE, S9l90GE(L ), S9l90GE(L )CE, S9l90GX(L ), S9l90GX(L )CE, S9l90GU(L ), S9l90GU(L )CE, S9l90GT(L ), S9l90GT(L )CE, S9l90GS(L ), S9l90GS(L )CE, , S9l90GA(H ), S9l90GA(H )(TP), S9l90GA(H )CE, S9l90GB(H ), S9l90GB(H )(TP), S9l90GB(H )CE, S9l90GC(H ), S9l90GC(H )(TP), S9l90GC(H )CE, S9l90GD(H ), S9l90GD(H )(TP), S9l90GD( H)CE, S9l90GE(H ), S9l90GE(H )CE, S9l90GX(H ), S9l90GX(H )CE, S9l90GU(H ), S9l90GU(H )CE, S9l90GT(H ), S9l90GT(H )CE, S9l90GS(H ), S9l90GS(H )CE, , S9l120GA, S9l120GA(TP), S9l120GACE, S9l120GB, S9l120GB(TP), S9l120GBCE, S9l120GC, S9l120GC(TP), S9l120GCCE, S9l120GD, S9l120GD(TP), S9l120GDCE, , S9l150GU, S9l150GUCE, S9l150GT, S9l150GTCE, S9l150GS, S9l150GSCE, , S9l180GA, S9l180GA(TP), S9l180GACE, S9l180GB, S9l180GB(TP), S9l180GBCE, S9l180GC, S9l180GC(TP), S9l180GCCE, S9l180GD, S9l180GD(TP), S9l180GDCE, S9l200GU, S9l200GUCE, S9l200GT, S9l200GTCE, S9l200GS,
GEAR HEAD MODEL:
S6DA3B, S6DA3.6B, S6DA5B, S6DA6B, S6DA7.5B, S6DA9B, S6DA10B, S6DA12.5B, S6DA15B, S6DA18B, S6DA20B, S6DA25B, S6DA30B, S6DA36B, S6DA40B, S6DA50B, S6DA60B, S6DA75B, S6DA90B, S6DA100B, S6DA120B, S6DA150B, S6DA180B, S6DA200B, S6DA250B,
GEAR HEAD MODEL:
S6DA3B, S6DA3.6B, S6DA5B, S6DA6B, S6DA7.5B, S6DA9B, S6DA10B, S6DA12.5B, S6DA15B, S6DA18B, S6DA20B, S6DA25B, S6DA30B, S6DA36B, S6DA40B, S6DA50B, S6DA60B, S6DA75B, S6DA90B, S6DA100B, S6DA120B, S6DA150B, S6DA180B, S6DA200B, S6DA250B,
GEAR HEAD MODEL:
S6DA3B, S6DA3.6B, S6DA5B, S6DA6B, S6DA7.5B, S6DA9B, S6DA10B, S6DA12.5B, S6DA15B, S6DA18B, S6DA20B, S6DA25B, S6DA30B, S6DA36B, S6DA40B, S6DA50B, S6DA60B, S6DA75B, S6DA90B, S6DA100B, S6DA120B, S6DA150B, S6DA180B, S6DA200B, S6DA250B,
GEAR HEAD
S6DA3B, S6DA3.6B, S6DA5B, S6DA6B, S6DA7.5B, S6DA9B, S6DA10B, S6DA12.5B, S6DA15B, S6DA18B, S6DA20B, S6DA25B, S6DA30B, S6DA36B, S6DA40B, S6DA50B, S6DA60B, S6DA75B, S6DA90B, S6DA100B, S6DA120B, S6DA150B, S6DA180B, S6DA200B, S6DA250B, S7DA3B, S7DA3.6B, S7DA5B, S7DA6B, S7DA7.5B, S7DA9B, S7DA10B, S7DA12.5B, S7DA15B, S7DA18B, S7DA20B, S7DA25B, S7DA30B, S7DA36B, S7DA40B, S7DA50B, S7DA60B, S7DA75B, S7DA90B, S7DA100B, S7DA120B, S7DA150B, S7DA180B, S7DA200B, S7DA250B, S8DA3B, S8DA3.6B, S8DA5B, S8DA6B, S8DA7.5B, S8DA9B, S8DA10B, S8DA12.5B, S8DA15B, S8DA18B, S8DA20B, S8DA25B, S8DA30B, S8DA36B, S8DA40B, S8DA50B, S8DA60B, S8DA75B, S8DA90B, S8DA100B, S8DA120B, S8DA150B, S8DA180B, S8DA200B, S8DA250B, S9KB3B, S9KB3.6B, S9KB5B, S9KB6B, S9KB7.5B, S9KB9B, S9KB10B, S9KB12.5B, S9KB15B, S9KB18B, S9KB20B, S9KB25B, S9KB30B, S9KB36B, S9KB40B, S9KB50B, S9KB60B, S9KB75B, S9KB90B, S9KB100B, S9KB120B, S9KB150B, S9KB180B, S9KB200B, S9KB250B, S9KC3BL-S, S9KC3.6BL-S, S9KC5BL-S, S9KC6BL-S, S9KC7.5BL-S, S9KC9BL-S, S9KC10BL-S, S9KC12.5BL-S, S9KC15BL-S, S9KC18BL-S, S9KC20BL-S, S9KC25BL-S, S9KC30BL-S, S9KC36BL-S, S9KC40BL-S, S9KC50BL-S, S9KC60BL-S, S9KC75BL-S, S9KC90BL-S, S9KC100BL-S, S9KC120BL-S, S9KC150BL-S, S9KC180BL-S, S9KC200BL-S, S9KC250BL-S, S9KC3BH-S, S9KC3.6BH-S, S9KC5BH-S, S9KC6BH-S, S9KC7.5BH-S, S9KC9BH-S, S9KC10BH-S, S9KC12.5BH-S, S9KC15BH-S, S9KC18BH-S, S9KC20BH-S, S9KC25BH-S, S9KC30BH-S, S9KC36BH-S, S9KC40BH-S, S9KC50BH-S, S9KC60BH-S, S9KC75BH-S, S9KC90BH-S, S9KC100BH-S, S9KC120BH-S, S9KC150BH-S, S9KC180BH-S, S9KC200BH-S, S9KC250BH-S, S9KC3BL, S9KC3.6BL, S9KC5BL, S9KC6BL, S9KC7.5BL, S9KC9BL, S9KC10BL, S9KC12.5BL, S9KC15BL, S9KC18BL, S9KC20BL, S9KC25BL, S9KC30BL, S9KC36BL, S9KC40BL, S9KC50BL, S9KC60BL, S9KC75BL, S9KC90BL, S9KC100BL, S9KC120BL, S9KC150BL, S9KC180BL, S9KC200BL, S9KC250BL, S9KC3BH, S9KC3.6BH, S9KC5BH, S9KC6BH, S9KC7.5BH, S9KC9BH, S9KC10BH, S9KC12.5BH, S9KC15BH, S9KC18BH, S9KC20BH, S9KC25BH, S9KC30BH, S9KC36BH, S9KC40BH, S9KC50BH, S9KC60BH, S9KC75BH, S9KC90BH, S9KC100BH, S9KC120BH, S9KC150BH, S9KC180BH, S9KC200BH, S9KC250BH, S9KH3B, S9KH3.6B, S9KH5B, S9KH6B, S9KH7.5B, S9KH9B, S9KH10B, S9KH12.5B, S9KH15B, S9KH18B, S9KH20B, S9KH25B, S9KH30B, S9KH36B, S9KH40B, S9KH50B, S9KH60B, S9KH75B, S9KH90B, S9KH100B, S9KH120B, S9KH150B, S9KH180B, S9KH200B,
GEAR HEAD
S6DA3B, S6DA3.6B, S6DA5B, S6DA6B, S6DA7.5B, S6DA9B, S6DA10B, S6DA12.5B, S6DA15B, S6DA18B, S6DA20B, S6DA25B, S6DA30B, S6DA36B, S6DA40B, S6DA50B, S6DA60B, S6DA75B, S6DA90B, S6DA100B, S6DA120B, S6DA150B, S6DA180B, S6DA200B, S6DA250B, S7DA3B, S7DA3.6B, S7DA5B, S7DA6B, S7DA7.5B, S7DA9B, S7DA10B, S7DA12.5B, S7DA15B, S7DA18B, S7DA20B, S7DA25B, S7DA30B, S7DA36B, S7DA40B, S7DA50B, S7DA60B, S7DA75B, S7DA90B, S7DA100B, S7DA120B, S7DA150B, S7DA180B, S7DA200B, S7DA250B, S8DA3B, S8DA3.6B, S8DA5B, S8DA6B, S8DA7.5B, S8DA9B, S8DA10B, S8DA12.5B, S8DA15B, S8DA18B, S8DA20B, S8DA25B, S8DA30B, S8DA36B, S8DA40B, S8DA50B, S8DA60B, S8DA75B, S8DA90B, S8DA100B, S8DA120B, S8DA150B, S8DA180B, S8DA200B, S8DA250B, S9KB3B, S9KB3.6B, S9KB5B, S9KB6B, S9KB7.5B, S9KB9B, S9KB10B, S9KB12.5B, S9KB15B, S9KB18B, S9KB20B, S9KB25B, S9KB30B, S9KB36B, S9KB40B, S9KB50B, S9KB60B, S9KB75B, S9KB90B, S9KB100B, S9KB120B, S9KB150B, S9KB180B, S9KB200B, S9KB250B, S9KC3BL-S, S9KC3.6BL-S, S9KC5BL-S, S9KC6BL-S, S9KC7.5BL-S, S9KC9BL-S, S9KC10BL-S, S9KC12.5BL-S, S9KC15BL-S, S9KC18BL-S, S9KC20BL-S, S9KC25BL-S, S9KC30BL-S, S9KC36BL-S, S9KC40BL-S, S9KC50BL-S, S9KC60BL-S, S9KC75BL-S, S9KC90BL-S, S9KC100BL-S, S9KC120BL-S, S9KC150BL-S, S9KC180BL-S, S9KC200BL-S, S9KC250BL-S, S9KC3BH-S, S9KC3.6BH-S, S9KC5BH-S, S9KC6BH-S, S9KC7.5BH-S, S9KC9BH-S, S9KC10BH-S, S9KC12.5BH-S, S9KC15BH-S, S9KC18BH-S, S9KC20BH-S, S9KC25BH-S, S9KC30BH-S, S9KC36BH-S, S9KC40BH-S, S9KC50BH-S, S9KC60BH-S, S9KC75BH-S, S9KC90BH-S, S9KC100BH-S, S9KC120BH-S, S9KC150BH-S, S9KC180BH-S, S9KC200BH-S, S9KC250BH-S, S9KC3BL, S9KC3.6BL, S9KC5BL, S9KC6BL, S9KC7.5BL, S9KC9BL, S9KC10BL, S9KC12.5BL, S9KC15BL, S9KC18BL, S9KC20BL, S9KC25BL, S9KC30BL, S9KC36BL, S9KC40BL, S9KC50BL, S9KC60BL, S9KC75BL, S9KC90BL, S9KC100BL, S9KC120BL, S9KC150BL, S9KC180BL, S9KC200BL, S9KC250BL, S9KC3BH, S9KC3.6BH, S9KC5BH, S9KC6BH, S9KC7.5BH, S9KC9BH, S9KC10BH, S9KC12.5BH, S9KC15BH, S9KC18BH, S9KC20BH, S9KC25BH, S9KC30BH, S9KC36BH, S9KC40BH, S9KC50BH, S9KC60BH, S9KC75BH, S9KC90BH, S9KC100BH, S9KC120BH, S9KC150BH, S9KC180BH, S9KC200BH, S9KC250BH, S9KH3B, S9KH3.6B, S9KH5B, S9KH6B, S9KH7.5B, S9KH9B, S9KH10B, S9KH12.5B, S9KH15B, S9KH18B, S9KH20B, S9KH25B, S9KH30B, S9KH36B, S9KH40B, S9KH50B, S9KH60B, S9KH75B, S9KH90B, S9KH100B, S9KH120B, S9KH150B, S9KH180B, S9KH200B,
Đánh giá
Chưa có đánh giá nào.
